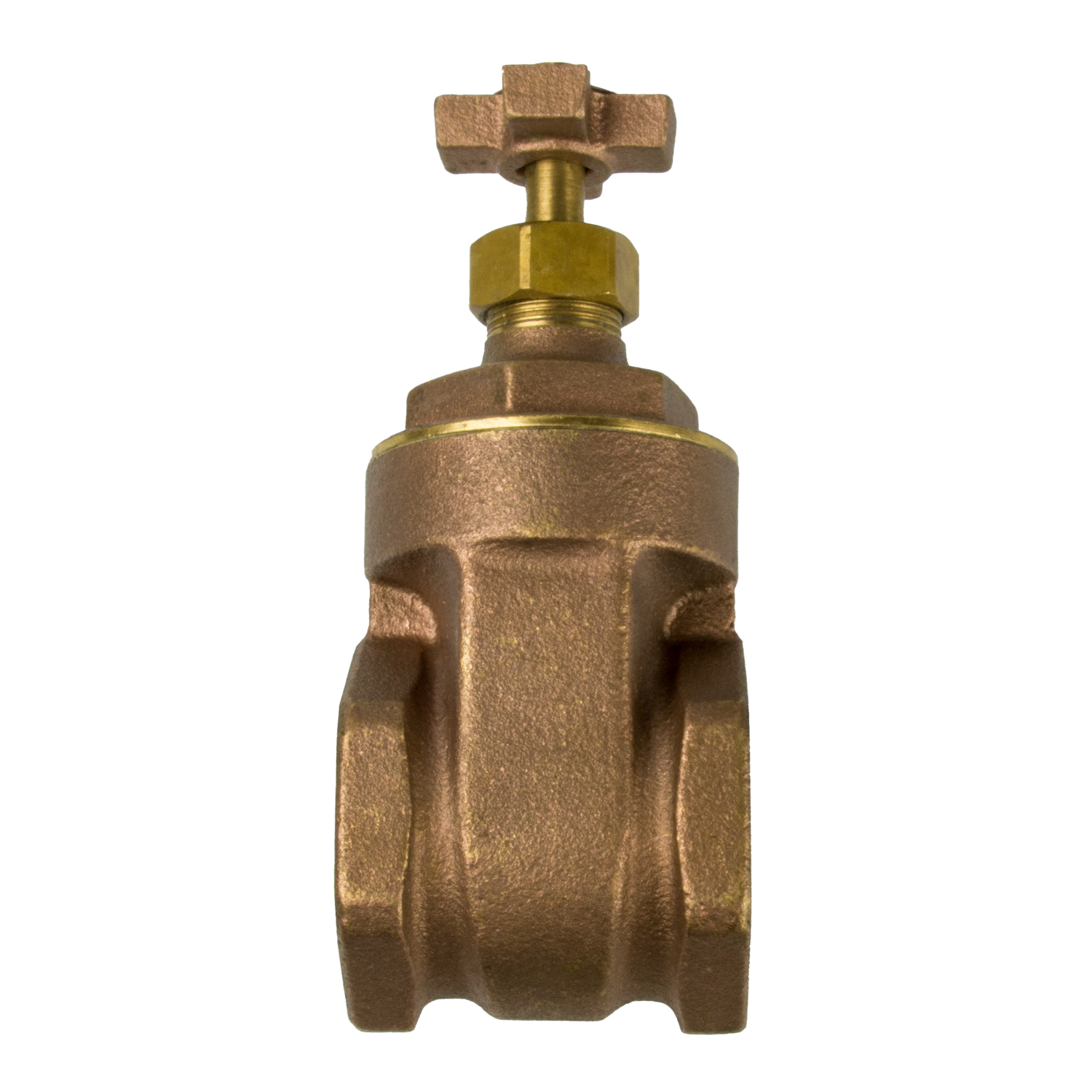

MIDLAND INDUSTRIES 940133X Full-Port Gate Valve, 3/4-in Nominal, FPT, 200 psi WOG Pressure, Brass Body, Cross Handle
940133X
3/4 FIPXFIP FULL PORT GATE VLV X-HDLE
X Handle
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | Non-Rising Stem |
| Body Material | Brass |
| Connection Type | FPT x FPT |
| Dimensions | 1.71 in L |
| Disc Material | Brass |
| Handle Material | Cast Iron |
| Inlet to Outlet Length | 1.71 in |
| Lead-Free/Contains Lead | Contains Lead |
| Media | Cold Water, Gas, Oil |
| Nominal Size | 3/4 in |
| Operator Type | Cross Handle |
| Packing Material | Brass |
| Port Type | Full |
| Pressure Rating | 200 psi WOG |
| Seat Material | Fiber |
| Stem Material | Cast Brass |
| Temperature Rating | 32 to 320 °F |
| Thread Size | 3/4 - 14 |
| Top to Inlet Center | 3.06 in |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 01714105I |
| 514T04X |
